Chiroteuthidae

Chiroteuthids are small to medium in size (up to 78 cm ML), rather gelatinous, slow moving, deep-sea squids usually with elongate necks and slender bodies. Considerable morphological differences exist among genera, three of which, in the past, were placed in separate families. However, they all share a unique paralarva known as the doratopsis stage (see Life History below). Members of the family have numerous chambers in the arms, head and mantle filled with a light-weight fluid, ammonium cloride, that provides near-neutral buoyancy for the squids. Most species have extremely long, slender tentacles.



Characteristics of subadults and adults
  1. Arms
    1. Arms with suckers in two series.
  2. Tentacles
    1. Club very elongate and divided into two or three portions by symmetrical protective membranes except in Planctoteuthis.
    2. Club suckers in four series or absent (Grimalditeuthis).
  3. Head
    1. Head with an elongate neck and usually a brachial pillar.
  4. Funnel
    1. Funnel locking-apparatus often oval and often with tragus and antitragus.
  5. Tail
    Figure . Dorsal (left) and side (right) views of the same Planctoteuthis sp., Indonesian waters, about 2000 m depth. From ROV video taken during the NOAA Ocean Exploration INDEX cruise.5. Tail, supported by gladius posterior to fins, with various "decorations" (see above photographs).
  6. Photophores
    1. Present in Chiroteuthis spp., Asperoteuthis spp., Grimalditeuthis sp. but not in Planctoteuthis spp.
  7. Production of doratopsid paralarvae (see Life History).

Comments

The presence of a doratopsis paralarva (unique to the Chiroteuthidae) and the "decorated" tail (nearly unique except for its presence in Joubiniteuthis portieri) . Additional features of the family include an indistinct eyelid sinus, absence of occipital folds, olfactory organs on long stalks (i.e. slender papillae, see below).

Figure. Medial view of the olfactory organ of Chiroteuthis sp. from Hawaiian waters; photograph by R. Young.

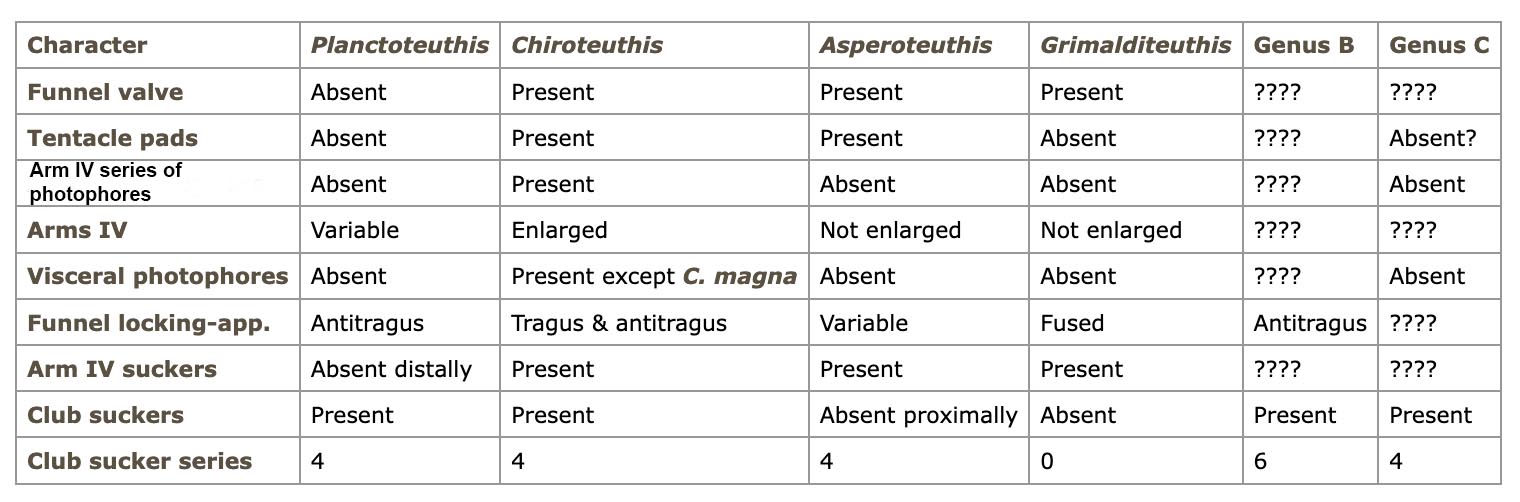

The following table compares subadults of the five chiroteuthid genera. Subadult characters for genus B, a paralarva, are assumed.Table,Chiroteuthidae genera

Table,Chiroteuthidae genera











Comments

The position of the olfactory papilla is useful in separating genera in the doratopsis stage: The organ lies near the funnel in Grimalditeuthis, just behind the eye in Chiroteuthis and Planctoteuthis and half-way between the funnel and eye in Asperoteuthis.



The relationships among the genera have not been examined with cladistics. In the Figure below, however, the first three tentacle clubs exhibit in an ordered series based on the progressive loss of suckers on the tentacular clubs of three genera. In (A) Chiroteuthis spp.the oral surface of the club contains suckers, in four series, throughout its length. In (B) Asperoteuthis spp. the proximal half of the club lacks suckers, while the distal half has suckers, also in four series. In (C)  Grimalditeuthis sp.the entire oral surface of the club lacks suckers. This suggests an evolutionary trend.  In the fourth club (D) Planctoteuthis spp.the club looks so different that it shouldn't belong in the same family with the other three.

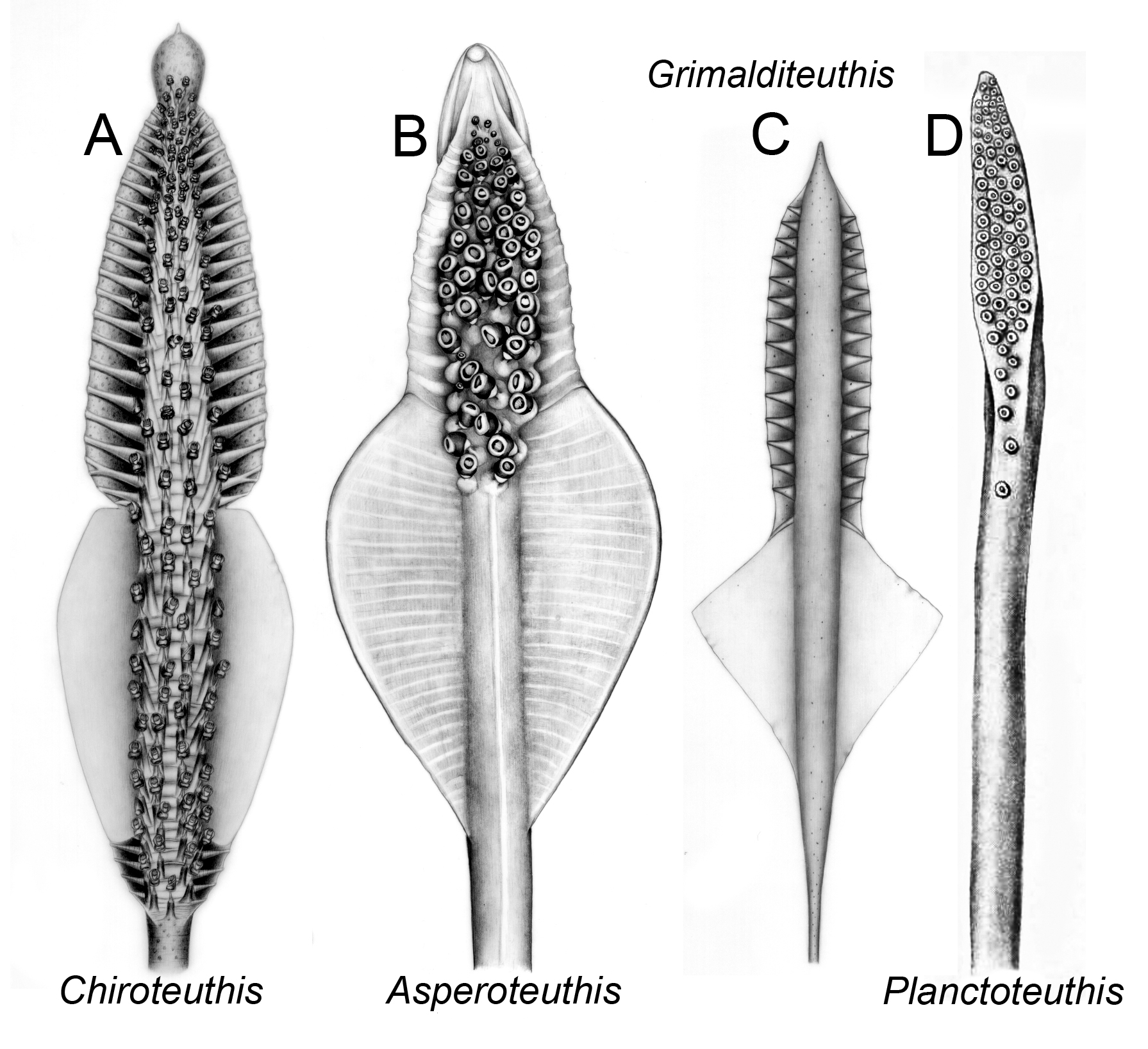

Figure. Oral views of the subadult clubs of, A. Chiroteuthis joubini (artist, J. R. Schroeder), B. Asperoteuthis acanthoderma, C. Grimalditeuthis bonplandi (artist, A. D. Hart), D. Planctoteuthis danae (from Roper and Young, 1967).

Roper and Young (1967) suggested that Planctoteuthis spp. became a subadult when still in the early doratopsis stage, while Chiroteuthis spp. continued to grow and change and developed photophores (which Planctoteuthis spp. lacked) and new types tentacle clubs (which Planctoteuthis spp. lacked) as they came close to transition to the subadult stage. Young (1991) suggested that all taxa in the chiroteuthid families (except Planctoteuthis spp.) also developod novel tentacle clubs also from their support from the stalks of their tentacles. The non-chiroteuthidae species in this family group, where known, lack a doratopsis stage.



The distinctive doratopsid club poses a problem: Is this paralarval club similar to the true adult club (i.e., the ancestral adult club) that is absent in the chiroteuthid families? (See "Comments" on chiroteuthid-families page.)

Nomenclature

Uncertain species:

The taxonomic position of several specimens that anchor species names is uncertain.
  1. Pfeffer (1912) described a small doratopsis as C. planctonica that he later placed in Planctoteuthis with reservations. The proper placement of this specimen is uncertain.
  2. Goodrich described a young Chiroteuthis from the Bay of Bengal that he called Doratopsis pellucida. The placement of this specimen is uncertain although it has often been assummed to be the young of C. macrosoma (= C. picteti) (e.g., Nesis 1982), presumably due to the proximity of type localities.
A list of all nominal genera and species in the Chiroteuthidae can be found here. The list includes the current status and type species of all genera, and the current status, type repository and type locality of all species and all pertinent references.
Chiroteuthid Doratopsis Stage

Doratopsis paralarvae possess the following characteristics at some point, at least, in their development:

  1. Elongate, chambered neck.
  2. Chambered brachial pillar.

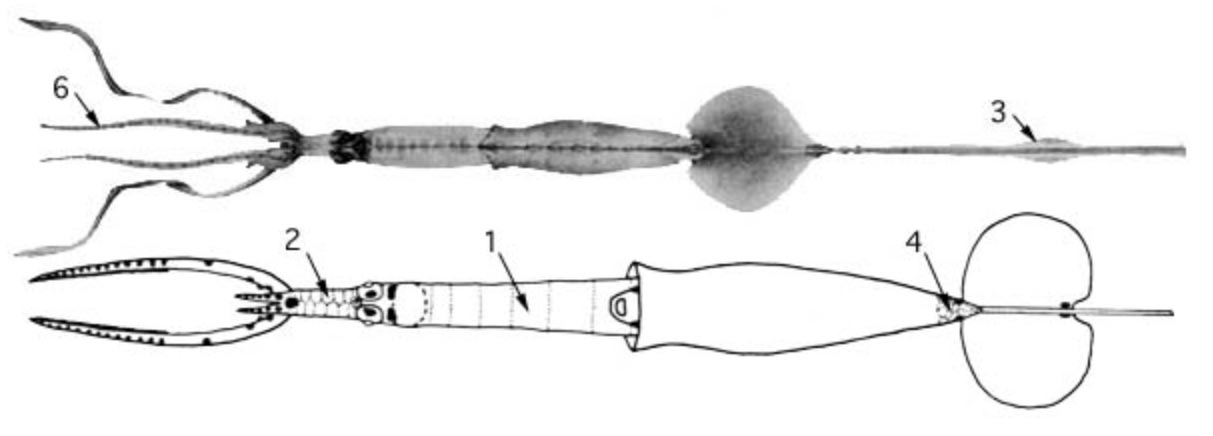

    Figure. Top - Dorsal view of late doratopsis stage of Chiroteuthis veranyi, 35 mm ML. Drawing from Pfeffer, 1912. Bottom - Ventral view of a middle doratopsis stage of Chiroteuthis spoeli, 9.6 mm ML Drawing from Young, 1991. Numbers refer to the list of characters at the left
  3. Gladius extending posteriorly beyond fins and supporting floatation structures or "ornamentation."
  4. Vesicular tissue in posterior region of mantle just anterior to fins.
  5. Vesiculate arms in advanced stages.
    Click on an image to view larger version & data in a new window

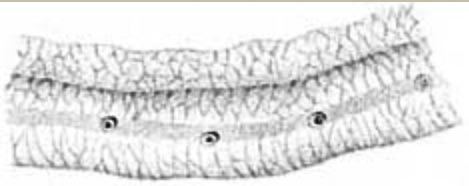

    Figure. Oral view of portion of arm IV of Planctoteuthis exopthalmica, 9.5 mm ML, showing vesiculate tissue. Drawing from Chun (1910).
  6. Ventral arms greatly elongate in advanced stages.
  7. Tentacular clubs of advanced stages with keels parallel to dorsal protective membranes along most of club length.
    Click on an image to view larger version & data in a new window

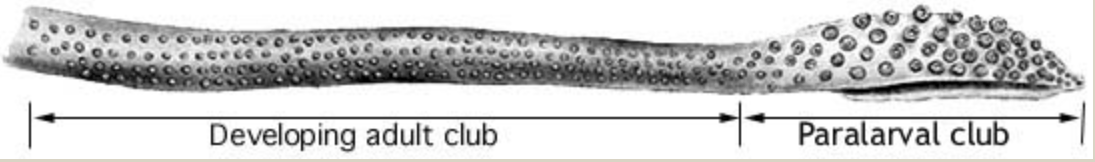

    Figure. Oral view of a tentacle from an unidentified doratopsis, 28 mm ML. Note the paralarval club with both large suckers and a keel (but without division into manus and dactylus) and also the presumptive adult club of small suckers on the tentacular stalk. Drawing from Roper and Young, 1967.



    Click on an image to view larger version & data in a new window

    Figure. Oral view of the distal region of a clubs of C. calyx in transition from the paralarval stage showing part of damaged adult club (right) with terminal paralarval club (left) still intact, damaged mantle estimated at 70 mm ML. Club much more advanced than that in previous drawing. Photograph by R. Young.

Most of these features are seen in these drawings of the doratopsis stage (numbers correspond to character numbers above):

Click on an image to view larger version & data in a new window



Figure. Top - Dorsal view of late doratopsis stage of Chiroteuthis veranyi, 35 mm ML. Drawing from Pfeffer, 1912. Bottom - Ventral view of a middle doratopsis stage of Chiroteuthis spoeli, 9.6 mm ML. Drawing from Young, 1991.

References

Chun, C. 1910. Die Cephalopoden. Oegopsida. Wissenschaftliche Ergebnisse der Deutschen Tiefsee Expedition auf dem Dampfer "Valdivia" 1898-1899, 18(1):1-401.

Pfeffer, G. 1912. Die Cephalopoden der Plankton-Expedition. Ergebniss der Plankton-Expedition der Humboldt-Stiftung. 2: 1-815.

Roper, C. F. E. and R. E. Young (1967). A review of the Valbyteuthidae and an evaluation of its relationship with the Chiroteuthidae. Proc. U.S. Nat. Mus., 123: 1-9.

Young, R. E. (1991). Chiroteuthid and related paralarvae from Hawaiian waters. Bull. Mar. Sci., 49: 162-185.

Unusual features

Doratopsis paralarvae and the adult stages of some species have a gladius that extends well posterior to the fins and supports a remarkable "tail" that bears a variety of ornamentation, mostly of uncertain function. The ornamentation may be in the form of an oval structure superficially resembling a pair of fins, or a series of small flaps and/or oval bulbs. The latter contain anastomosing canals filled with fluid that is lighter than seawater (Hunt, 1996). The overall appearance in some cases is reminescent of a siphonophore (Vecchione, et al., 1992)

Click on an image to view larger version & data in a new window

Figure. Still frames from a videotape of a doratopsis (left) of Chiroteuthis calyx and the siphonophore Nanomia bijuga (right) recorded in-situ from a remotely operated vehicle (ROV) in the eastern North Pacific off California (courtesy of the Monterey Bay Aquarium Research Institute). An AVI format video clip of this animal can be seen at Cephalopods in Action.
